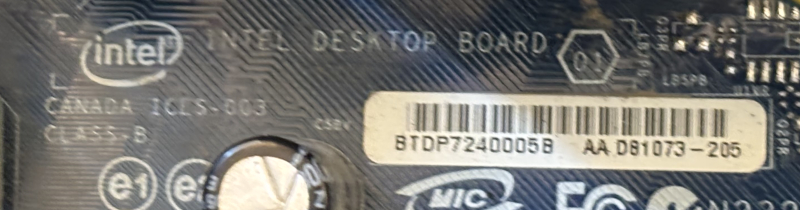

Intel Desktop Board DP35DP (AAD81073-205) ATX Motherboard With I/O Shield

Go to slide 7 Go to slide 2

Go to slide 1 Go to slide 3

Go to slide 2 Go to slide 4

Go to slide 3 Go to slide 5

Go to slide 4 Go to slide 6

Go to slide 5 Go to slide 7

Go to slide 6 Go to slide 1

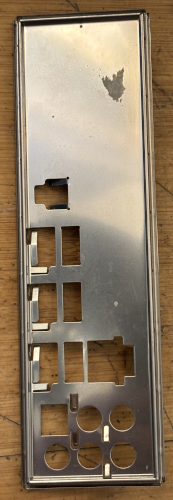

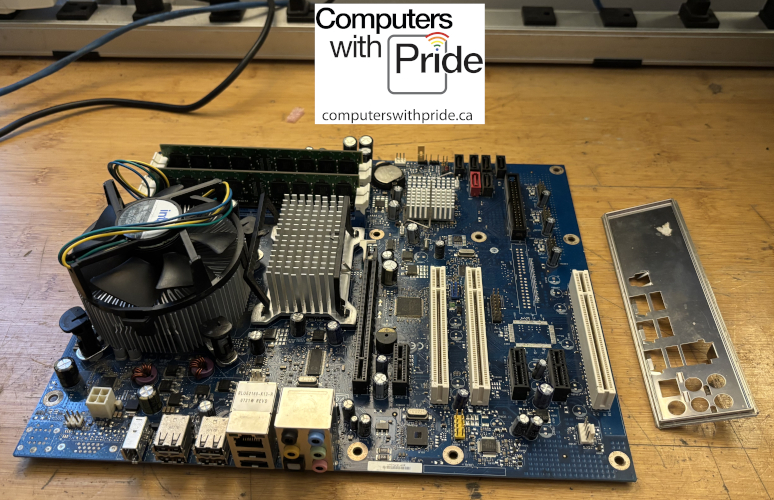

The motherboard is in great condition. It has been fully tested and is in confirmed to be in full working condition. It comes with 4GB of memory, an Intel Core 2 E8400 CPU 3.00GHz, the heatsink and the I/O shield. Please see below for system specifications.

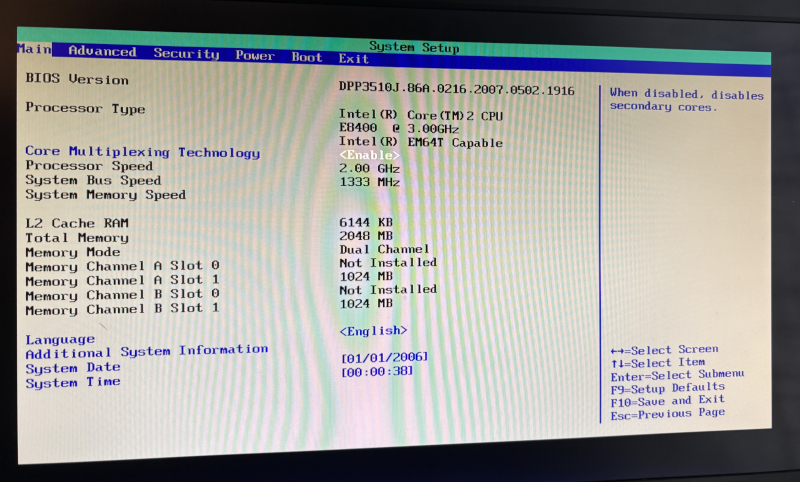

Intel Core 2 E8400 CPU 3.00GHz
4GB Memory

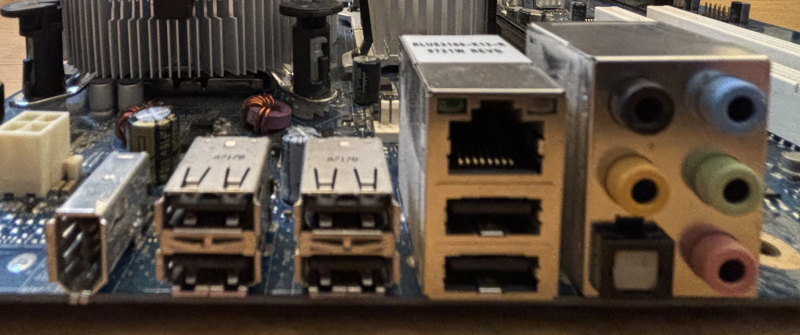

6 x USB ports
Firewire (FW400) port
Network (RJ45) port
6 x audio ports
Form factor: ATX

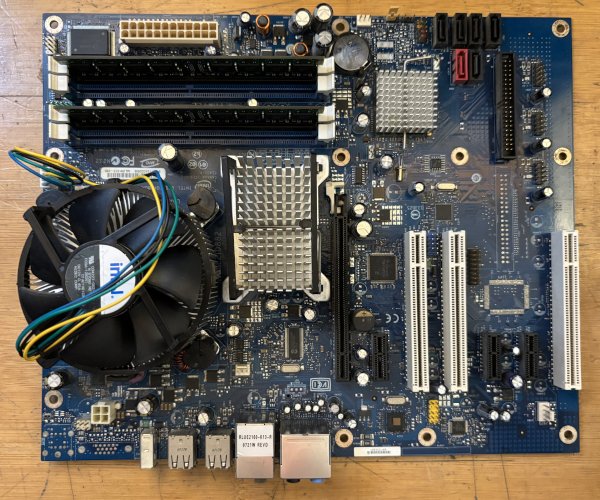

Expansion Slots

1 X CPU (Intel Socket LGA775)
4 x DIMM DDR2 memory slots
1 x PCIe x16 Gen 2
3 x PCIe x1 Gen 2
3 x PCI
6 x SATA ports
1 x IDE connector
24-pin main power connector
4-pin 12V CPU power connector

$80
